The realm of manufacturing has long been dominated by traditional casting techniques, an age-old process that has evolved over centuries. However, the advent of metal 3D printing technology has revolutionized how we approach the creation of metal parts. The comparison between these two manufacturing methods—metal 3D printing and traditional casting—unfolds a narrative of contrast, wherein ancient and modern techniques battle for supremacy in a variety of industries.
In this detailed comparison, we’ll explore the fundamental distinctions between Direct Metal Laser Sintering (DMLS), a popular method in metal 3D printing, and traditional casting. Through this exploration, we’ll address how factors such as part design, production quantities, and lead times influence your choice of manufacturing process.
Understanding the Basics: Metal 3D Printing vs. Traditional Casting
Before diving into the differences between these two manufacturing processes, let’s establish a baseline by looking at how they work in their simplest forms.
Traditional Casting: An Age-Old Process
Casting is a time-honored technique in which molten metal (or plastic) is poured into a mold that contains the cavity of the final part’s shape. Over time, the liquid metal cools, solidifies, and takes the form of the mold. The solidified part is then removed from the mold, after which any finishing work, such as machining or polishing, may be necessary.
While traditional casting offers high reliability for large-scale production, it is a relatively slow process. The creation of molds can be expensive and time-consuming, and the cooling and solidification phase is often slow. Additionally, the need for finishing touches may extend the overall timeline.

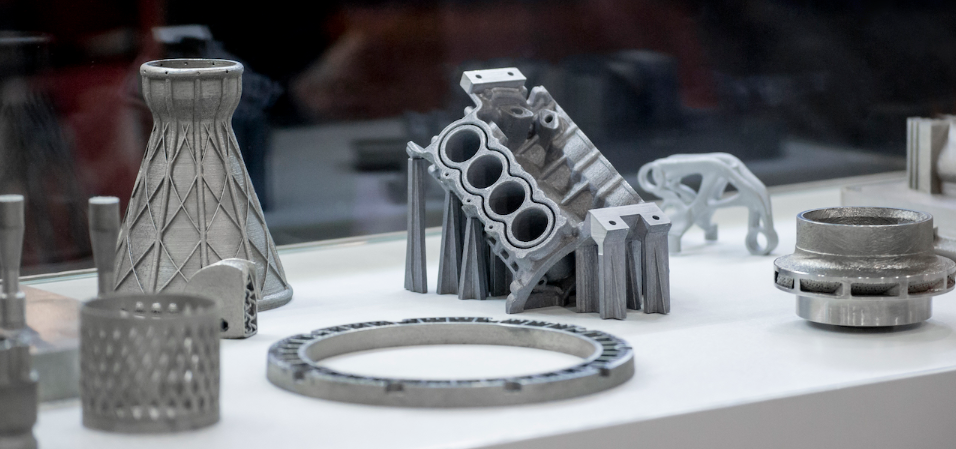

Metal 3D Printing: A Layer-by-Layer Approach
In contrast, metal 3D printing utilizes additive manufacturing to build parts layer by layer. This process typically involves powdered metal or metal filaments which are selectively fused together by high-powered lasers or other energy sources. After each layer is completed, the build platform moves down slightly, and a fresh layer of powder is deposited.
This layer-by-layer approach offers immense flexibility, allowing for the creation of parts with intricate geometries and high precision. While the printing process itself can be time-consuming—especially for larger parts—the results often exceed the precision and complexity that traditional casting can provide.
Key Factors to Consider: Part Design, Quantities, and Lead Times
The decision to use metal 3D printing versus traditional casting hinges on a few critical factors, including the complexity of the part design, the quantity of parts needed, and the lead times required for delivery. Let’s explore these factors in more detail.
Part Design: Which Process Handles Complexity Better?
Casting: Suitable for Simple Parts
Casting is an excellent choice for creating parts with simple geometries or parts that do not require intricate internal features. If the part design is relatively straightforward, casting can be efficient and cost-effective. However, as the complexity of the part increases, traditional casting faces certain limitations.
- Limitations in Flow and Detail: When dealing with small or intricate features, casting becomes problematic. Liquid metal has difficulty flowing into small channels or intricate cavities within the mold, often resulting in incomplete or poorly formed parts. For example, parts with thin walls, internal voids, or complex geometries may not be properly formed through casting.
- Mold Design Constraints: Additionally, the mold itself presents constraints. Complex molds are not only expensive and time-consuming to create but also require careful consideration of factors like material flow, cooling rates, and shrinkage during solidification.
Metal 3D Printing: Freedom in Complexity
In contrast, metal 3D printing thrives when dealing with complex and intricate designs. The layer-by-layer process enables manufacturers to create parts with fine internal structures, complex geometries, and customized features that would be nearly impossible to achieve through casting.
- Intricate Designs: Small holes, cavities, or internal channels—features that would be difficult to cast—can be effortlessly created in a 3D-printed part.
- Customization: If your design requires frequent tweaks or iterations, metal 3D printing allows for fast adjustments without needing new molds or tooling. Simply upload a new design file and continue the production process.
Moreover, 3D printing supports more innovative geometries such as lattice structures, internal cooling channels, and organic shapes that reduce material usage and improve part performance.
Accuracy: Which Process Delivers Better Precision?
Casting: Challenges with Tolerances and Shrinkage
When it comes to accuracy, traditional casting can be a challenge. Although casting can achieve reasonably high tolerances, the shrinkage of the material as it cools introduces variability in the final part’s dimensions. This phenomenon, known as casting shrinkage, is a result of the metal contracting as it transitions from a liquid to a solid state.
- Assembly Issues: For parts that require assembly, casting can present further challenges. Complex assemblies often necessitate brazing or welding, processes that can introduce inaccuracies and compromise the overall integrity of the part.
- Material and Temperature Sensitivity: The accuracy of casting is also affected by the type of material being used and the temperature at which it is poured. A slight variation in temperature or material quality can cause inconsistencies in the final part.
Metal 3D Printing: Precision and Consistency
Metal 3D printing excels when it comes to precision. The use of laser sintering (in processes like DMLS) allows for fine control over the part’s dimensions, producing parts that closely adhere to CAD specifications.
- Near Zero Shrinkage: Metal 3D printed parts exhibit minimal shrinkage, as the laser precisely fuses the metal powder in a controlled environment, ensuring that parts maintain their designed dimensions.
- Consistency: Since 3D printing is a highly automated process, it offers consistent results across multiple batches. This level of control ensures that each part is nearly identical in terms of size, shape, and surface finish.
Additionally, 3D printing benefits from instantaneous feedback through Design for Manufacturing (DFM) tools, which analyze the CAD file to ensure manufacturability and provide real-time recommendations.
Part Size: How Does Each Process Handle Large or Small Parts?
Casting: Ideal for Larger Parts
Traditional casting is well-suited for creating large parts, as it can efficiently manufacture items such as engine blocks, turbine blades, and bridge components. The scale and robustness of casting make it the go-to method for manufacturing large, bulkier parts.
However, there is a limitation to the scale of parts that can be economically cast. Creating a mold for a massive part requires significant investment in equipment, space, and resources.
Metal 3D Printing: Pushing Boundaries in Size
While metal 3D printing is generally better known for producing smaller parts, modern advancements are enabling the production of larger components as well. Many high-end 3D metal printers can create parts as large as 31.5 in. x 15.7 in. x 19.7 in. (400mm x 800mm x 500mm). However, large parts still present a longer printing time and might require multiple printing sessions to complete.
- Modular Production: For large parts, metal 3D printing offers the possibility to create smaller sections that can later be assembled. This can be a more cost-effective approach compared to traditional methods that require massive molds.
Quantity Considerations: Low-Volume vs. High-Volume Production
Casting: Best for High-Volume Production
Casting shines in high-volume manufacturing. The process becomes more cost-effective as the number of parts increases. The initial costs of mold creation are high, but as production scales, the cost per unit drops dramatically.
However, creating molds for low-volume runs is a financial burden. The cost of the mold setup and the wait time for foundry capacity can make small runs of parts impractical.
Metal 3D Printing: Low-Volume Efficiency
In contrast, metal 3D printing is ideal for low-volume production. Since there is no need for molds or tooling, manufacturers can create small batches of parts without the initial overhead costs of traditional casting.
- Flexibility in Production: Printing multiple smaller parts simultaneously in one batch can speed up production times. Furthermore, DMLS and other 3D printing techniques allow for easy prototyping and modifications, eliminating the need for extensive retooling or delays.
Lead Times: Speeding Up Production
Casting: Long Lead Times
Lead times in traditional casting can be extremely lengthy, particularly when new molds are required or when foundries have long waiting lists. Even if you already have an existing mold, the casting process itself can take several weeks or even months, especially for large or intricate parts. Furthermore, if there are errors in the mold or design, the timeline resets.
Metal 3D Printing: Rapid Turnaround
On the other hand, metal 3D printing provides a dramatic reduction in lead time. Parts can often be printed within days, even for larger, more complex components. While larger parts may take longer to print, the flexibility and speed offered by additive manufacturing is unmatched in comparison to traditional methods.
Applications: Which Method Works Best for Different Industries?
Casting: The Backbone of Heavy Industry
Traditional casting continues to dominate industries where the part size and strength are critical. It is extensively used in industries such as:
- Transportation: Automotive parts like engine blocks, transmission casings, and suspension components.
- Aerospace and Marine: Components such as turbine blades, propellers, and structural parts.
- Heavy Machinery: Large parts that require strength and durability, such as hydraulic systems and engine components.
These industries benefit from casting’s ability to manufacture robust, large-scale parts, even though the design may not demand intricate features.
Metal 3D Printing: Pioneering Innovation
Conversely, metal 3D printing is often used for parts that require precision, customization, or complex geometries. It has a significant role in:
- Prototyping: The ability to rapidly produce prototypes in production-grade metals has transformed the way companies approach product development.
- Aerospace: Complex parts like turbine blades or fuel nozzles that require internal cooling channels or optimized shapes.
- Medical Devices: Custom implants, surgical tools, and prosthetics tailored to the patient’s anatomy.
Hybrid Approaches: Leveraging Both Methods
Interestingly, some companies are now exploring the combination of both manufacturing methods. For instance, metal 3D printed molds can be used to facilitate casting, allowing manufacturers to benefit from the flexibility of additive manufacturing and the production efficiency of traditional casting.
Quick Comparison: Casting vs. Metal 3D Printing
| Characteristic | Casting | Metal 3D Printing |
|---|---|---|
| Lead Times | Long (can exceed a year) | Rapid (usually days to weeks) |
| Production Availability | Limited foundries, booked in advance | Growing number of machines, increasing capacity |
| Part Changes | Changes require new molds | Instant changes via CAD updates |
| Start-up Costs | Expensive molds | No tooling required |
| Piece-Part Cost | Lower with high quantities | Higher at low quantities, but does not decrease much with scale |
| Material Choice | Wide variety available | Limited, but expanding with key metals like aluminum, titanium, and stainless steel |
Conclusion: The Future of Metal Manufacturing
Both metal 3D printing and traditional casting offer distinct advantages depending on the application. While traditional casting remains the best choice for large, simple parts produced in high volumes, metal 3D printing excels in the realm of customization, complexity, and low-to-medium volume runs.
As additive manufacturing continues to evolve, the flexibility and efficiency of metal 3D printing are poised to challenge the supremacy of traditional casting, particularly in industries that demand precision and speed.
For many companies, the future may involve a hybrid approach, combining the best of both worlds. Whether you choose metal 3D printing, traditional casting, or a combination of both, understanding the strengths and limitations of each process will help you make the most informed decision for your manufacturing needs.
