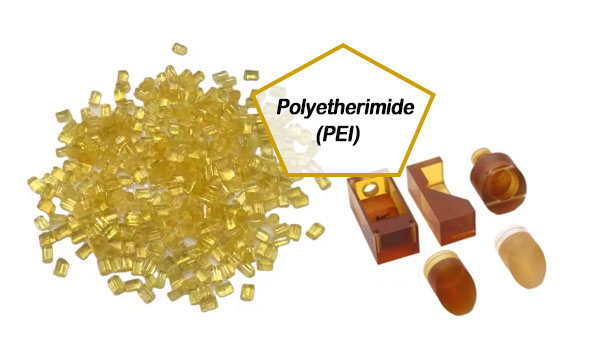

Properties of Polyetherimide (PEI)

Polyetherimide, or PEI, is a high-performance thermoplastic polymer known for its exceptional mechanical, thermal, and electrical properties. It is a high-strength, high-rigidity aromatic polyimide with excellent thermal stability. Below are some key properties of PEI:

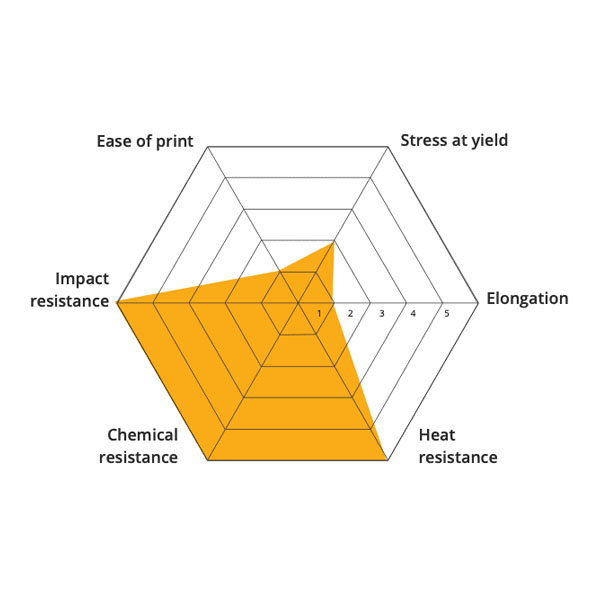

Summary Table of Key Properties of Polyetherimide (PEI)

1. Thermal Properties

• Heat Resistance:
PEI has a remarkable heat deflection temperature (HDT) between 215°C and 220°C (419°F–428°F), which allows it to withstand high temperatures without significant deformation. This makes it ideal for applications requiring high heat resistance, such as in automotive and aerospace industries.
It maintains strength and dimensional stability even at elevated temperatures.

• Glass Transition Temperature (Tg):
With a Tg of around 217°C (423°F), PEI retains its structural integrity even at temperatures far above the typical operating range of most plastics.

• Low Coefficient of Thermal Expansion (CTE):
PEI has a very low CTE, meaning it experiences minimal dimensional change as temperatures fluctuate, making it highly stable and reliable for precision parts.

2. Mechanical Properties

• High Strength and Stiffness:
PEI offers exceptional mechanical properties, such as high tensile strength, flexural strength, and rigidity, which remain intact even at high temperatures. This makes it suitable for structural components in demanding environments.
Its tensile strength typically ranges from 80 to 100 MPa, depending on the grade.

• Impact Resistance:
While PEI is mechanically strong, it has moderate impact resistance compared to other engineering thermoplastics. It can handle large loads but is more prone to brittle fracture under certain conditions.

• Excellent Dimensional Stability:
PEI parts exhibit excellent stability under mechanical loads, making it suitable for tight-tolerance applications such as precision gears, bearings, and electrical connectors.

3. Electrical Properties

• Good Electrical Insulation:
PEI is an excellent electrical insulator, offering high dielectric strength and low electrical conductivity. This makes it ideal for electrical and electronic applications, such as circuit boards, connectors, and insulators.

• Low Dielectric Loss:
It exhibits low dielectric loss, making it suitable for high-frequency electrical applications.

4. Chemical Resistance

• Good Chemical Resistance:
PEI resists a wide variety of chemicals, including acids, bases, oils, and solvents. However, it may be vulnerable to strong acids or bases at high temperatures.
It performs well in harsh environments, making it suitable for applications in the automotive, aerospace, and medical sectors.

• Non-reactive:
PEI’s non-reactivity and biocompatibility make it suitable for contact-sensitive environments, such as pharmaceutical and food processing industries.

5. Mechanical Properties at Low Temperatures

• Good Low-Temperature Performance:
PEI retains its mechanical strength and dimensional stability even in low-temperature environments, making it suitable for applications in sub-zero conditions without cracking or losing rigidity.

6. Optical Properties

• Transparency:
One of the notable features of PEI is its transparency, which is useful in optical applications like lenses, viewports, and optical equipment where clear visibility is essential.
It has a light transmission rate of over 80% for thin-walled sections.

7. Flame Resistance

• Flame Retardancy:
PEI is inherently flame-retardant, self-extinguishing when exposed to flames and does not continue to burn once the flame source is removed. It complies with various flame resistance standards, including UL 94 V-0 for vertical burning.
This makes PEI suitable for electrical and automotive applications where fire safety is a priority.

8. Processing Characteristics

• Injection Molding and Extrusion:
PEI can be processed using conventional thermoplastic techniques like injection molding, extrusion, and thermoforming. However, due to its high melting point, specialized equipment is required to handle the temperatures (typically above 340°C).
PEI has a high viscosity and degrades at elevated temperatures, making it challenging to process. However, advancements in polymer technology have led to flow-enhanced grades that are easier to process.

9. Environmental Resistance

• UV Stability:
PEI resists degradation from ultraviolet light, maintaining its mechanical properties when exposed to sunlight or artificial light sources. However, it may yellow over time with prolonged UV exposure, which can be mitigated by adding UV stabilizers.

• Weather Resistance:
PEI performs well in outdoor conditions, resisting degradation from weathering, humidity, and other environmental factors.

10. Biocompatibility

• Medical and Pharmaceutical Use:
Thanks to its excellent chemical resistance, dimensional stability, and transparency, PEI is widely used in medical devices, pharmaceutical packaging, and implantable devices. It meets FDA standards for healthcare applications.

Applications of Polyetherimide (PEI):
PEI is used in a wide range of industries requiring high-performance materials, such as:
• Aerospace: Structural components, brackets, and seals that must endure high temperatures and mechanical stress.
• Automotive: Under-the-hood components like connectors, housings, and fuel systems.
• Electronics: Electrical insulators, connectors, and high-performance electrical components.
• Medical: Sterilization containers, diagnostic equipment, and implantable devices.
• Industrial: Gears, bearings, and pumps that operate under stress and extreme temperatures.

Conclusion

Polyetherimide (PEI) is a high-performance thermoplastic polymer known for its excellent thermal stability, mechanical strength, and electrical insulation properties. These features make it an ideal material for demanding applications in industries such as aerospace, automotive, medical, and electronics, where reliability in extreme conditions is essential. Despite its higher cost, PEI’s versatility and durability make it the material of choice for high-end industrial applications.
